Two Ply Roll Fed Box Type Square Bottom Sunhope Paper Bag Machine

Two Ply Roll Fed Box Type Square Bottom Sunhope Paper Bag Machine

Product Details:

Place of Origin: CHINA
Brand Name: SUNHOPE
Certification: CE
Model Number: SBH330/450+DL02/03

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Wooden Case
Delivery Time: 3-10 months
Payment Terms: T/T
Supply Ability: 5sets/Month
Get Best Price Contact Now

Detail Information

Model No.: SBH330/450+DL02 Certifiaction: CE
Bag Type: Food Bag Glue System: Nordson Cold Glue System
Motion Controller: Mitsubishi Touch Screen Display Main Bearing: NSK Japan
Tension Control System: Mitsubish Japan Web Guiding Control System: BST Web Guiding Control System
High Light:

Square Bottom Sunhope Paper Bag Machine

,

Roll Fed Sunhope Paper Bag Machine

,

sunhope machinery

Product Description

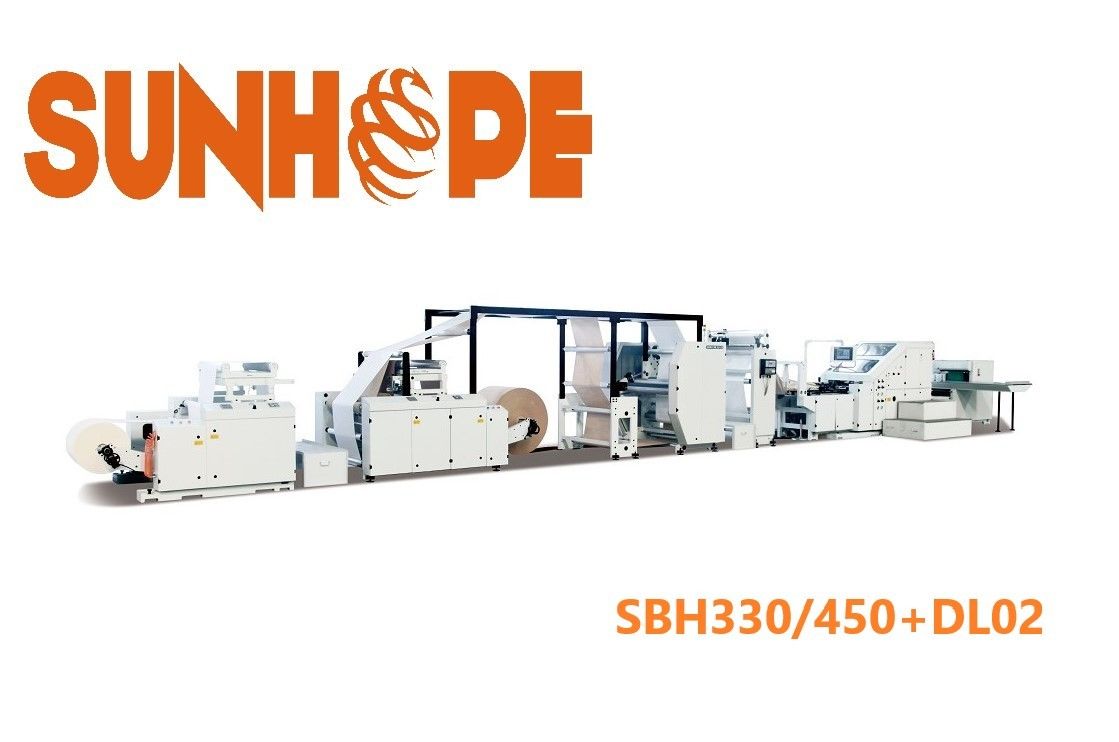

Two Ply Roll Fed Box Type Square Bottom Sunhope Paper Bag Machine

SBH330/450+DL02/03(Two Ply Unit) Roll Fed Square Bottom Paper Bag Machinery





This machine is designed to manufacture square bottom paper bags l in blank or printed paper rolls.Paste base paper, Side gluing, tube forming,cutting hand, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen, and servo motor for bag length control, this machine can produce different size paper bag.



Main Features:

1.Equipped with Japan Mitsubishi servo system and SICK photocell for correction, tracking the printed material accurately, minimize the adjustment and preset time, increase the production efficiency.


2.Equipped with Mitsubishi electric control system, Mitsubishi motion controller (CPU), through the integration of and optical fiber to realize high speed and high precision, motion control,

3.Two sets of reel stand sections,equipped with Japan Mitsubishi tension system and Germany BST WEB guiding system,can reduce waste and improve efficiency.



4. Two ply paper bag machine can produce bags with offset bottom slitting.



5. Two ply bags can have partial or full gluing between plies.

Model SBH330+DL02 SBH450+DL03
Paper Roll Width (mm) 420-1050 618-1310
Paper Roll Dia(mm) ≤1500 ≤1500
Roll Core Dia.(mm) φ76 φ76
Paper Thickness(gsm) 50-160 70-160
Tube Cut Off Length(mm) 280-530 368-762
Bag Face Width(mm) 125-330 200-450
Bag Bottom Size(mm) 70-150 90-180
Max. Speed (bags/min) 230 160
Total Power(kw) 21.5 25.8
Machine Weight(kg) about 11500 about 14000
Machine Size((L×W×H)m) 17.5×3.1×1.96 19×3.9×2
